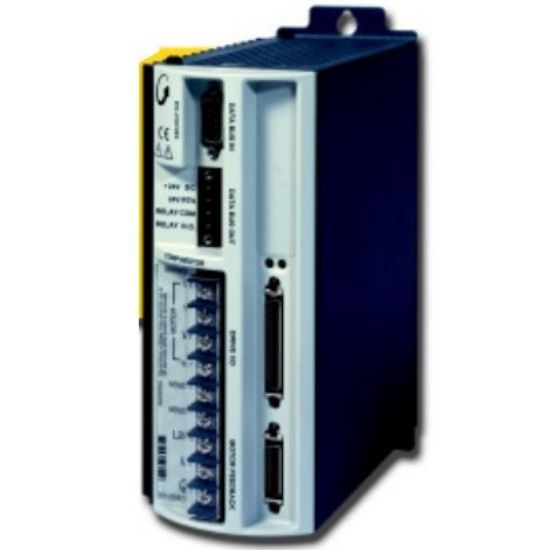

GV-H20E

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU GV-H20E

Features

Provides six power ranges for up to 11.8 kW of continuous power
Torque, velocity, step & direction and CW/CCW modes
Encoder tracking mode
Digital notch filters provide the tools to eliminate mechanical resonance
Sinusoidal commutation with encoder or resolver feedback
Simplified tuning and configuration
Variable resolution for encoder signal output as well as the command input
Wide range of PWM frequencies for linear motor support

Products specifications

Attribute name	Attribute value
UOM	EA	24 V Keep Alive	24 VDC +/- 20%
Peak Current	50 Amp	Voltage	208 - 265 VAC
Frequency	50/60 Hz	Continuous Power	5.9 kW
Bus Voltage	295/340 VDC	Continuous Current	20 Amp
Phase	1 or 3Ø	Peak Power	14.7 kW
