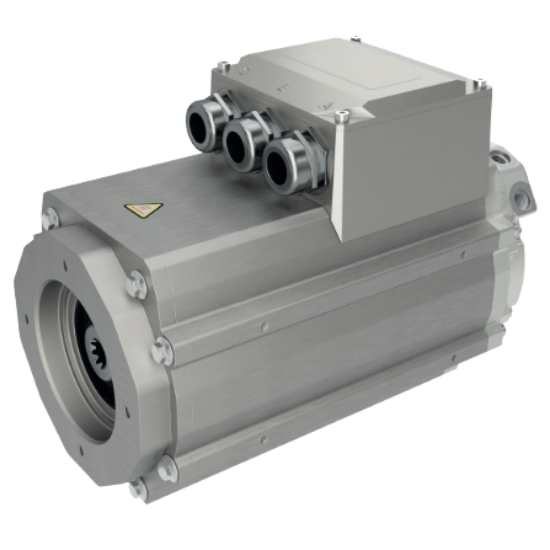

GVM142050C6WSABP21G

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU GVM142050C6WSABP21G

Products specifications

Attribute name	Attribute value
UOM	EA	Series	GVM142
Rated Speed Liquid Cooled	1,699 RPM	Ambient Temperature	45 °C
Stall Current Peak	14 Amp RMS	Max Continuous Speed Liquid Cooled	2,577 RPM
Rated Speed Air Cooled	1,642 RPM	Max Continuous Speed Air Cooled	2,411 RPM
Coolant Temperature	60 °C	Type	Permanent Magnet
Rotor Inertia	0.000273483 kg-m2	Max Winding Temperature	180 °C
Peak Torque	30 Nm	Stall Torque Continuous	16 Nm
Rated Torque Air Cooled	11 Nm	Motor	Global Vehicle
Rated Torque Liquid Cooled	14 Nm	Rated Shaft Output Power Liquid Cooled	3 kW
Voltage	350 VDC	Rated Shaft Output Power Air Cooled	2 kW
Peak Power	4 kW	Winding Temperature at Rating	140 °C
