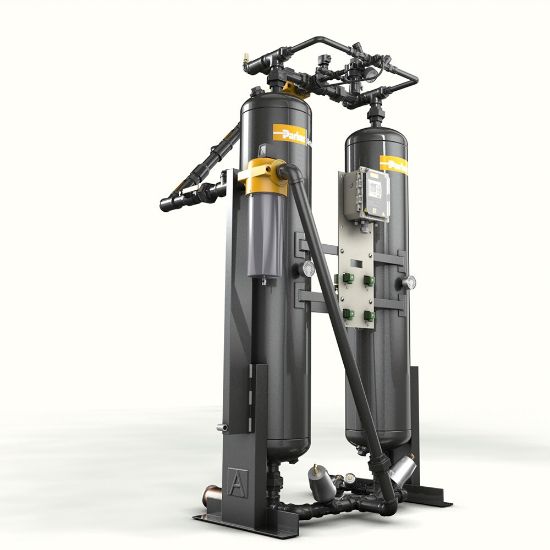

TW201BN14NNN - Heatless Desiccant Air Dryer - TW Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU TW201BN14NNN

$15,196.12/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Electrical Requirements	120 v / 1 ph / 60 hz
Pressure Dew Point (F)	-40	Maximum Flow Rate (cfm)	200
Maximum Flow Rate	339.8 m3/hour	Minimum Operating Pressure	80 psi
Optional Accessories	Pre and After Filter	Maximum Ambient Temperature	120 °F
Maximum Inlet Pressure Rating	100 PSI	Minimum Operating Temperature	50 °F
Depth	22 inch	Maximum Operating Pressure	150 psi
Connection Type	1 1/2 NPT	Purge Pressure Rate	30
Compatible Prefilter Element	JE-CC0350	Minimum Ambient Temperature	40 °F
Installed Condensate Drain Type	Timed Drain	Compatible After Filter Element	FC-0600
Compatible After Filter	JC0250-F	Compatible Prefilter	JC0250-C
Maximum Operating Temperature	120 °F	Height	82 inch
Weight	692 lb
