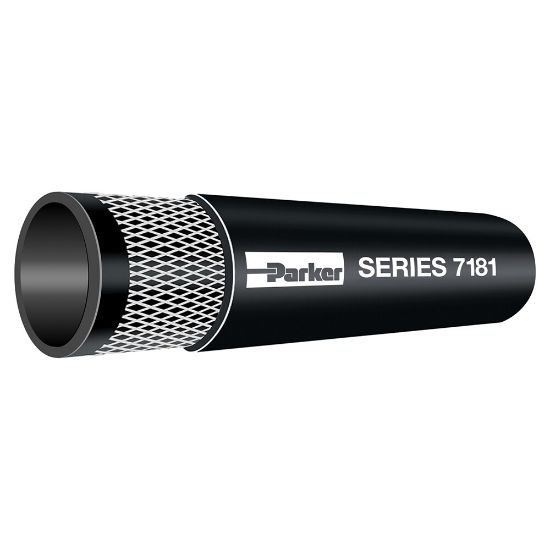

7181-311 - Heavy Duty Heater Hose, Series 7181

Heavy Duty Heater Hose is designed for use in heater and radiator systems in vehicles and industrial equipment in applications to 257°F and 65 psi, Series 7181

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	658 in stock

SKU 7181-311

$1.35/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	65
Hose I.D. (inch)	5/16	Standard Pack Qty (ft)	700
Minimum Operating Temperature	-40 °F	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Maximum Operating Pressure	50 psi	Minimum Bend Radius	5 inch
Cover Color	Black	Weight	0.27 kg/m
Hose Reinforcement Material	2 Plies of Textile	Package Type	Reel
Compatible Fitting	n/a	Hose Inner Tube Material	Black
Maximum Operating Temperature	257 °F	Inside Diameter	5/16 inch
Outside Diameter	15 mm	Media	Coolants
Specifications Met	SAE J20R3EC, Class D2

Product resources

Literature and Reference Materials
