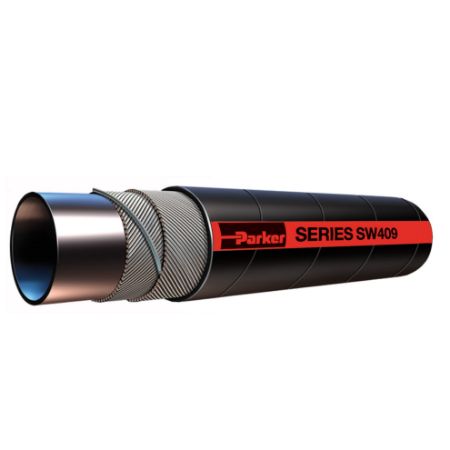

Heavy Duty Sand Recovery/Vacuum Hose, Series SW409
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series SW409 Heavy Duty Sand Recovery/Vacuum Hose provides superior service across multiple high pressure bulk transfer applications. The thick rubber tube provides additional resistance to sand and other severely abrasive materials going through the hose, and dissipates static electrical charge for operator safety. The cover provides resistance to abrasion and weathering for maximum performance.
Markets:
• Construction
• General Industrial
• Surface Mining
Features/Benefits:
• Tube: Tan 1/4” thick natural rubber for superior abrasion resistance to 150°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for crush resistance and kink resistance, full suction capability and a path to conduct a static charge to ground.
• Cover: Black SBR for resistance to abrasion, cuts, gouging, scuffs and weathering resistance.
Applications:
- media
• Abrasive materials
• Debris
• Sand
- usage
• Bulk loading/unloading
• Construction sites
• Highway maintenance
• In-plant transfer
• On-site sand clean-up/recovery
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
Read More...Markets:
• Construction
• General Industrial
• Surface Mining
Features/Benefits:
• Tube: Tan 1/4” thick natural rubber for superior abrasion resistance to 150°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for crush resistance and kink resistance, full suction capability and a path to conduct a static charge to ground.
• Cover: Black SBR for resistance to abrasion, cuts, gouging, scuffs and weathering resistance.
Applications:
- media
• Abrasive materials
• Debris
• Sand
- usage
• Bulk loading/unloading
• Construction sites
• Highway maintenance
• In-plant transfer
• On-site sand clean-up/recovery
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Maximum Operating Temperature | Cover Color | Maximum Operating Pressure | Hose Reinforcement Material | Package Type | Minimum Bend Radius | Vacuum Pressure Rating | Outside Diameter | Media | Inside Diameter | Weight | Hose Inner Tube Material | Cover Material | Minimum Operating Temperature | Length per Package | Cover Structure | Design Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW409-2000 | 71 in stock | 18 in stock | $48.69/foot | FT | 2 | 150 °F | Black | 200 psi | 2 Plies of Textile with Dual Wire Helix | Coil | 152.4 mm | 737 mm-Hg | 2.750 inch | Wet Abrasive Powders | 2 inch | 1.41 lb | Natural Rubber (NR) Static Dissipative | Styrene Butadiene Rubber (SBR) | -40 °F | 100 ft | Wrapped | 4:1 | |
| SW409-3000 | Backordered | Backordered | $66.42/foot | FT | 3 | 150 °F | Black | 12.1 bar | 2 Plies of Textile with Dual Wire Helix | Coil | 304.8 mm | 737 mm-Hg | 95.3 mm | Wet Abrasive Powders | 76.2 mm | 1.10 kg | 3/16" Static Dissipative | Styrene Butadiene Rubber (SBR) | -40 °C | 100 ft | Wrapped | 4:1 | |
| SW409-4000 | Backordered | 32 in stock | $75.98/foot | FT | 4 | 66 °C | Black | 10.3 bar | 2 Plies of Textile with Dual Wire Helix | Coil | 406.4 mm | 737 mm-Hg | 4.750 inch | Wet Abrasive Powders | 4 inch | 1.43 kg | Natural Rubber (NR) Static Dissipative | Styrene Butadiene Rubber (SBR) | -40 °F | 100 ft | Wrapped | 4:1 | |
| SW409-6000 | Backordered | Backordered | $144.87/foot | FT | 6 | 150 °F | Black | 100 psi | 2 Plies of Textile with Dual Wire Helix | Coil | 24 inch | 737 mm-Hg | 173 mm | Dry Abrasive Powders (Debris) | 152.4 mm | 2.40 kg | Black Static Dissipative | Styrene Butadiene Rubber (SBR) | -40 °C | 100 ft | Wrapped | 4:1 |
