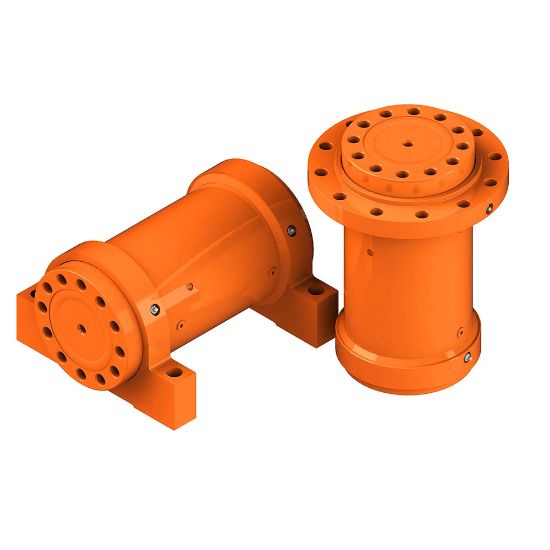

Picture of Helical Hydraulic Rotary Actuator - Helac L30-Series - 34742

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Helical Hydraulic Rotary Actuator - Helac L30-Series - 34742

The Helac L30 Series is a heavy duty helical hydraulic rotary actuator that is suitable for harsh environments. Designed for applications that require high bearing capacity, the L30 Series features foot or flange output with 180° or 360° rotation.
Availability:
Backordered
SKU 34742
$97.85
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAModel NumberL30-65-M-FF-180-S2-C-H
DivisionCylinder DivisionTechnologyHydraulics
DivisionCylinder DivisionApplicationHydraulic
BrandHelacIndustryHydraulic
Product TypeHelicalWidthVaries See Catalog for Dimensions
HeightVaries per Model. See Catalog for Specifications.LengthVaries per Model. See Catalog for Specifications.
Rotation Angle180Product SeriesL30 Series
Maximum Operating Pressure207Mounting TypeFlange
Operating Pressure207Maximum Output Torque207
Displacement1868.1Drive Torque7345
Torque Rating7.345Holding Torque18306
Axial Load Capacity3629Radial Load Capacity4990
Weight72.6
