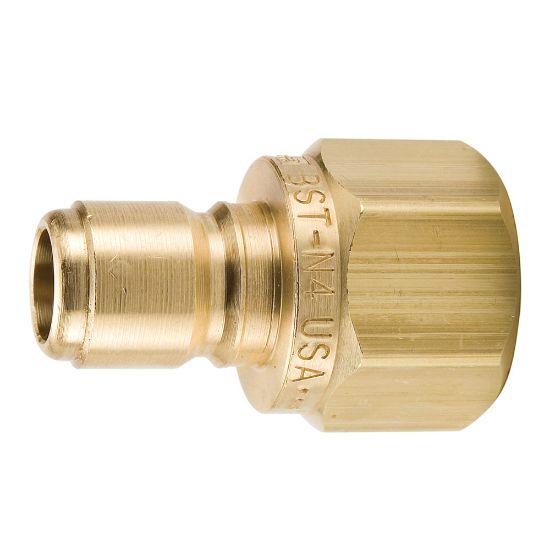

BST-N4 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Name: BST-N4 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series
SKU: BST-N4
Price: 12.33 USD
Availability: InStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:

23 in stock

WICHITA, KS	4
TOPEKA, KS	3
Springfield, MO	2
COLUMBIA, MO	2
Kansas City, KS	2
Joplin, MO	2
Peoria, IL	2
Olivette, MO	2
Decatur, IL	2
Kansas City, KS	1
Olivette, MO	1

Partner Available:

446 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BST-N4

$12.33/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Female NPTF
Maximum Operating Pressure	2200	Connection Thread Size (inch)	1/2 - 14
Coupling Half	Male Nipple	Body Material	BRASS
Body Size (inch)	1/2	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Brass
Hex Size	1.13 inch	Seal Material	n/a
Plating Type	n/a	Flow Rate	12 Gal/min
Valve Type	Unvalved	Dimensional Weight	0.03998800959232614 lb
