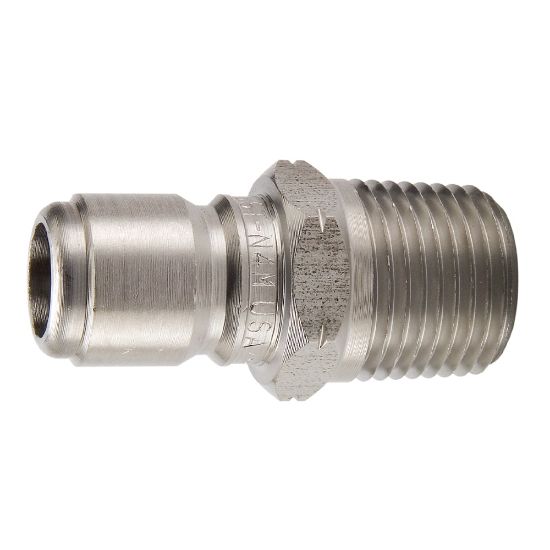

SSST-N2M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU SSST-N2M

$72.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Connection Thread Size (inch)	1/4 - 18	Body Material	316 Stainless Steel
Body Size (inch)	1/4	Coupling Half	Male Nipple
Maximum Operating Pressure	6700	Flow Rate	6 Gal/min
Valve Type	Unvalved	Body Material	Stainless Steel
Seal Material	n/a	Plating Type	n/a
Hex Size	0.56 inch	Dimensional Weight	0.02670863309352518 lb
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
