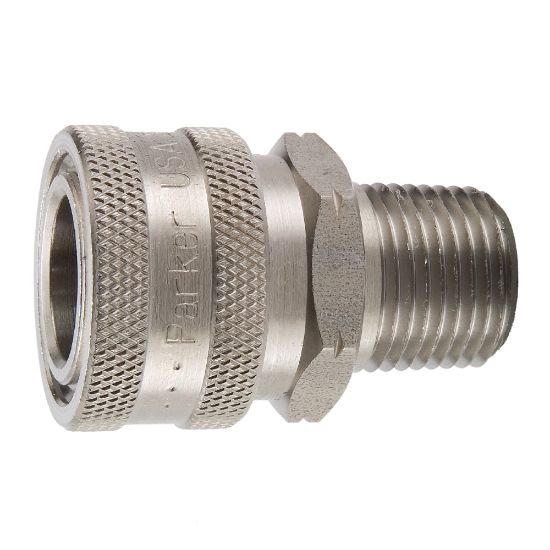

SST-1M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Name: SST-1M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series
SKU: SST-1M
Price: 70.26 USD
Availability: InStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:

4 in stock

Kansas City, KS	3
Wichita, KS	1

Partner Available:

11 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU SST-1M

$70.26/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	4200
Body Material	303 Stainless Steel	Body Size (inch)	1/8
Connection Thread Size (inch)	1/8 - 27	Connection Type	Male NPTF
Coupling Half	Female Coupler	Hex Size	0.56 inch
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Body Material	Stainless Steel	Seal Material	Nitrile
Valve Type	Unvalved	Flow Rate	3 Gal/min
Dimensional Weight	0.01335431654676259 lb

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
