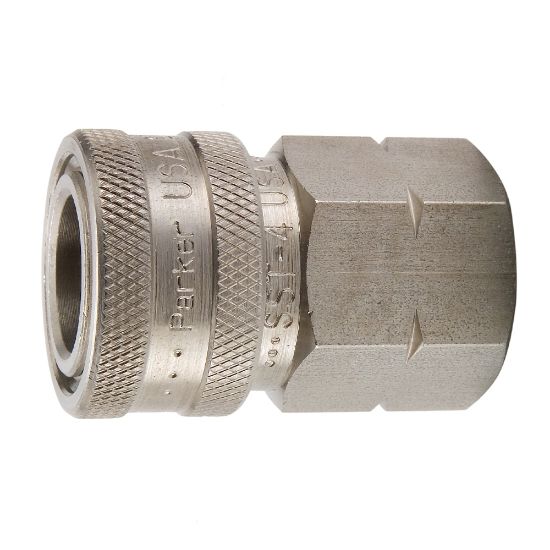

SST-8Y - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU SST-8Y

$260.47/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1
Coupling Half	Female Coupler	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPTF	Body Material	303 Stainless Steel
Maximum Operating Pressure	1700	Seal Material	Fluorocarbon
Hex Size	1.75 inch	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Flow Rate	50 Gal/min
Body Material	Stainless Steel	Valve Type	Unvalved

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
