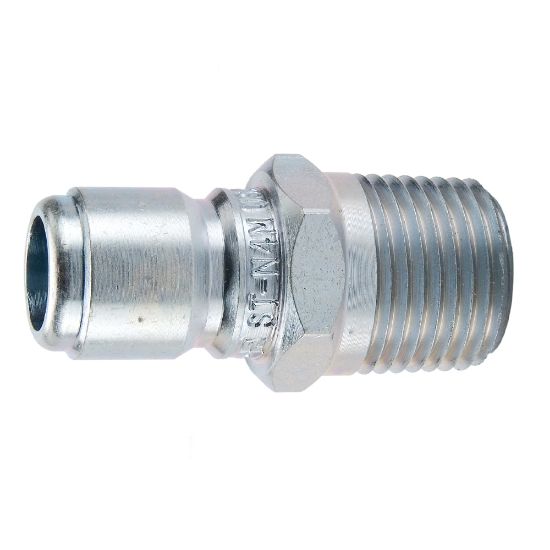

ST-N1M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Name: ST-N1M - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series
SKU: ST-N1M
Price: 6.75 USD
Availability: InStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:

8 in stock

Kansas City, KS	5
TOPEKA, KS	2
Joplin, MO	1

Partner Available:

28 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU ST-N1M

$6.75/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/8 - 27
Maximum Operating Pressure	2600	Connection Type	Male NPTF
Coupling Half	Male Nipple	Body Material	Steel
Body Size (inch)	1/8	Minimum Operating Temperature	-40 °F
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Hex Size	0.44 inch	Valve Type	Unvalved
Dimensional Weight	0.013329336530775381 lb	Seal Material	n/a
Flow Rate	3 Gal/min	Maximum Operating Temperature	250 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
