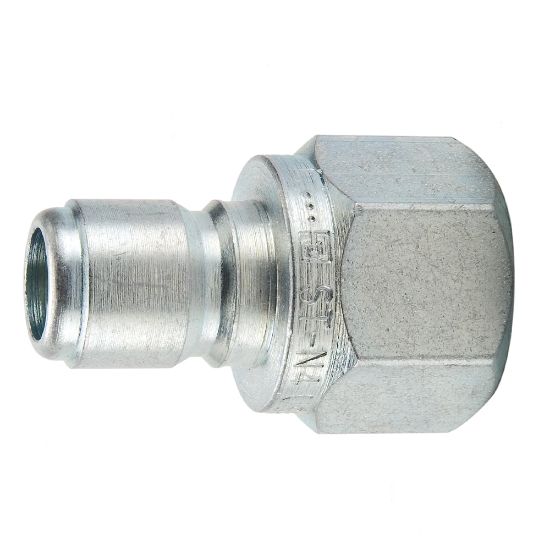

ST-N3 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series

Name: ST-N3 - High Flow, Unvalved, Hydraulic Quick Couplings - ST Series
SKU: ST-N3
Price: 7.12 USD
Availability: InStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:

20 in stock

Olivette, MO	10
TOPEKA, KS	8
Decatur, IL	2

Partner Available:

366 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU ST-N3

$7.12/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	3/8 - 18
Connection Type	Female NPTF	Coupling Half	Male Nipple
Body Material	Steel	Body Size (inch)	3/8
Maximum Operating Pressure	3500	Seal Material	n/a
Flow Rate	12 Gal/min	Hex Size	0.88 inch
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Dimensional Weight	0.01999400479616307 lb	Valve Type	Unvalved

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
