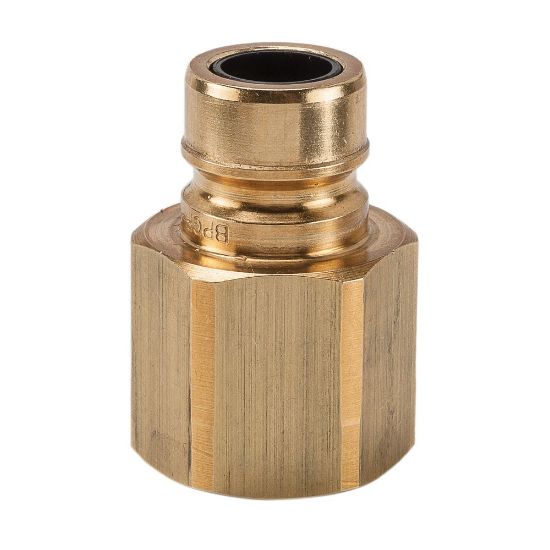

HP-1002-16FP - High Flow, Valved, Hydraulic Quick Couplings - HP Series

Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	7 in stock

SKU HP-1002-16FP

$303.17/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size	1
Coupling Half	Male Nipple	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPSF	Flow Rate	50 Gal/min
Body Material	Steel	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Plating Type	Zinc with clear trivalent chromate	Valve Type	Poppet
Hex Size	1.62 inch	Maximum Operating Pressure	5000 psi

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
