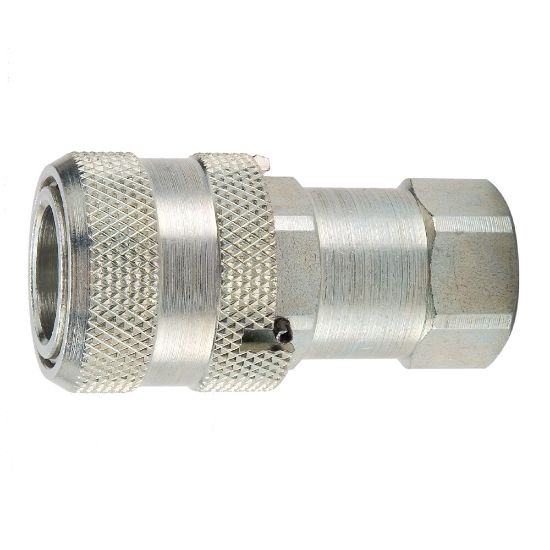

TC-371 - High Pressure Application Quick Couplings - TC Series

Name: TC-371 - High Pressure Application Quick Couplings - TC Series
SKU: TC-371
Price: 67.18 USD
Availability: InStock

Parker's high pressure quick couplers and nipples are ideal for use with hydraulic equipment where high pressure fluid lines require fast and easy connection and disconnection.

Availability:

7 in stock

Olivette, MO	5
Joplin, MO	2

Partner Available:

129 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU TC-371

$67.18/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Type	Female NPSF	Maximum Operating Temperature	400 °F
Hex Size	0.94	Minimum Operating Temperature	-15 °F
Body Size	3/8 inch	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Connection Thread Size	3/8"-18 inch
Dimensional Weight	0.05341726618705036 lb	Maximum Operating Pressure	10000 psi
Maximum Flow Rate	6 Gal/min	Valve Type	Poppet
Seal Material	Fluorocarbon

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
