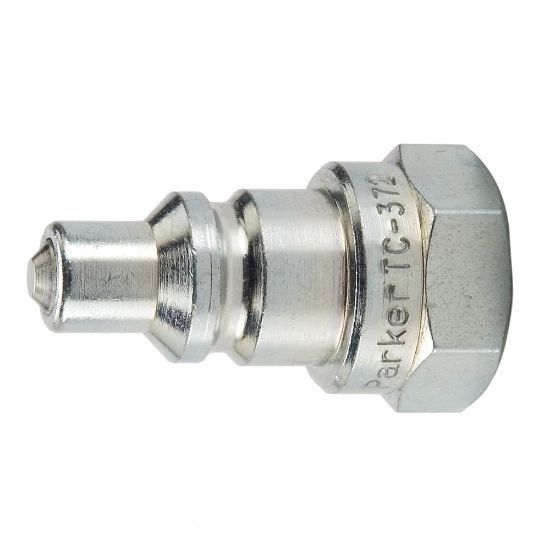

Picture of High Pressure Application Quick Couplings - TC Series - TC-372

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Application Quick Couplings - TC Series - TC-372

Parker's high pressure quick couplers and nipples are ideal for use with hydraulic equipment where high pressure fluid lines require fast and easy connection and disconnection.
Availability:
3 in stock
Joplin, MO2
Kansas City, KS1
SKU TC-372
$45.92
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfMale Nipple
Valve TypePoppetConnection TypeFemale NPSF
Maximum Operating Temperature400 °FBody Size3/8 inch
Minimum Operating Temperature-15 °FApplicationHigh Pressure Hydraulics
Hex Size0.94Body MaterialSteel
Dimensional Weight0.02670863309352518 lbPlating TypeZinc with clear trivalent chromate
Maximum Operating Pressure10000 psiConnection Thread Size3/8"-18 inch
Maximum Flow Rate6 Gal/minDivisionQuick Coupling Division
Product TypeManual ConnectSeal MaterialFluorocarbon
