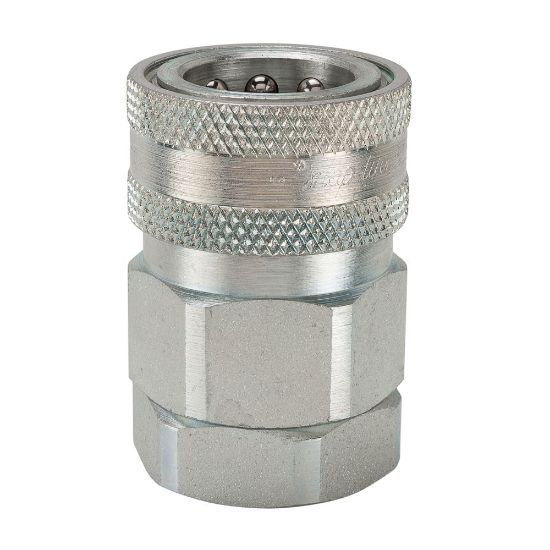

VIHC4-4F - High Pressure, High Flow, Quick Connect Air Couplers - IH Series

Parker's Snap-tite, high pressure, high flow quick connect air couplers and nipples are suitable for applications where high volume air lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU VIHC4-4F

$33.98/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Thread Style	Female
Connection Type	NPTF	Sleeve Type	Manual
Seal Material	Nitrile	Maximum Operating Pressure	6500 psi
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Steel	Coupling Half	Coupler
Lock Type	Locking balls	Valve Type	Tubular
Plating Type	Zinc with clear trivalent chromate
