*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

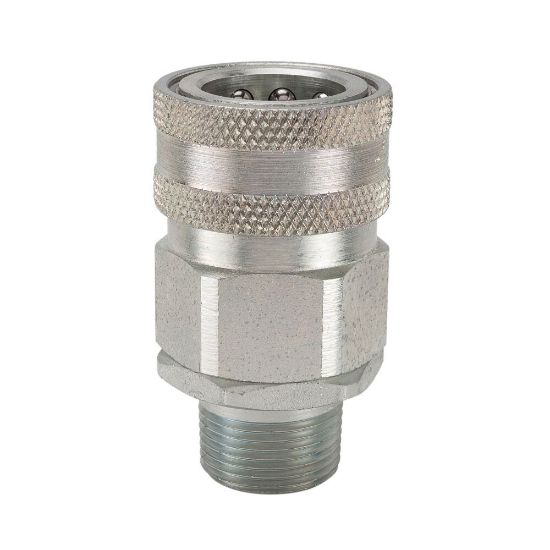

VIHC6-6MSL - High Pressure, High Flow, Quick Connect Air Couplers - IH Series

Parker's Snap-tite, high pressure, high flow quick connect air couplers and nipples are suitable for applications where high volume air lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU VIHC6-6MSL

$56.66/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	3/8 - 18
Thread Style	Male	Body Size (inch)	3/8
Connection Type	NPT	Sleeve Type	Manual with sleeve lock
Seal Material	Nitrile	Valve Type	Tubular
Maximum Operating Pressure	4500 psi	Coupling Half	Coupler
Lock Type	Locking balls	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Body Material	Steel
Minimum Operating Temperature	-40 °F

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
