*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

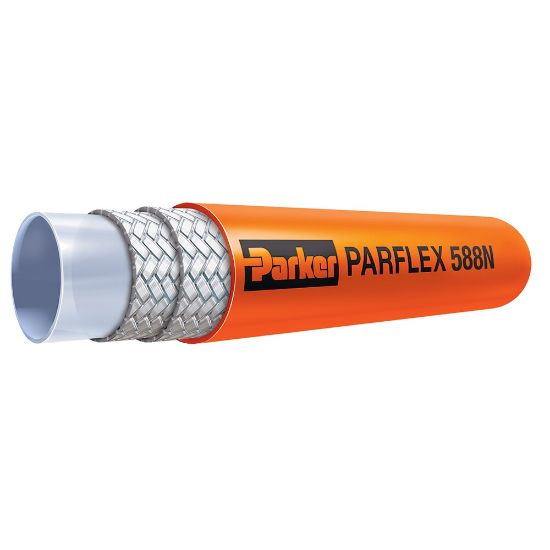

588N-12 - High Pressure Hose - 580N/588N

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	143 in stock

SKU 588N-12

$16.21/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Hose Type	Non Conductive	Notes	Do not use for pneumatic applications
Minimum Operating Temperature	-40 °C	Design Factor	4:1
Product Style	Non-Conductive	Maximum Operating Temperature	212 °F
Minimum Bend Radius	203 mm	Cover Material	Polyurethane
Compatible Fitting	56 Series	Hose Reinforcement Material	Fiber
Size	-12	Inside Diameter	3/4 inch
Outside Diameter	1.150 inch	Media	Petroleum Hydraulic Fluids
Weight	0.23 lb/ft	Specifications Met	DNV GL
Maximum Operating Pressure	2250 psi	Hose Inner Tube Material	Non-Conductive

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
