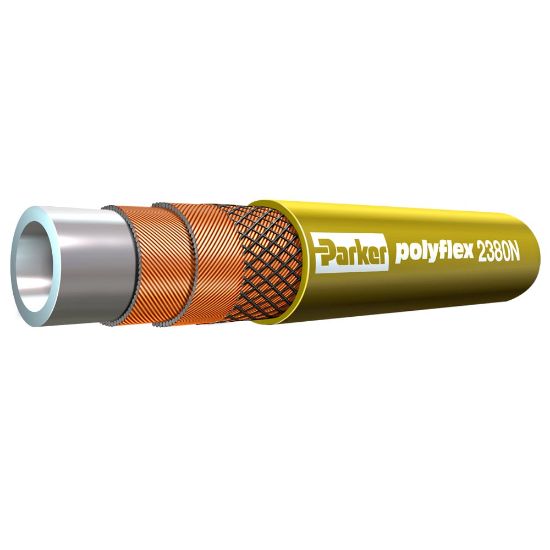

Picture of High Pressure Hydraulic Hose - 2380N/2388N - 2380N-04V06

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2380N/2388N - 2380N-04V06

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.
Availability:
Backordered
SKU 2380N-04V06
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/4
Cover ColorYellowMaximum Working Pressure (psi)10,150
Minimum Operating Temperature-40 °FSize-4
Specifications MetN/ADesign Factor4:1
Maximum Operating Temperature212 °FMinimum Bend Radius2-3/4 inch
Cover MaterialPolyurethaneWeight0.27 kg/m
Inside Diameter6.4 mmMediaPetroleum Hydraulic Fluids
Compatible Fitting8X SeriesApplicationPortable Equipment
Maximum Operating Pressure70 MPaOutside Diameter13.4 mm
Hose Inner Tube MaterialPolyamide 12Hose Reinforcement Material2 Spirals and 2 Open Spirals of High Tensile Steel Wire
