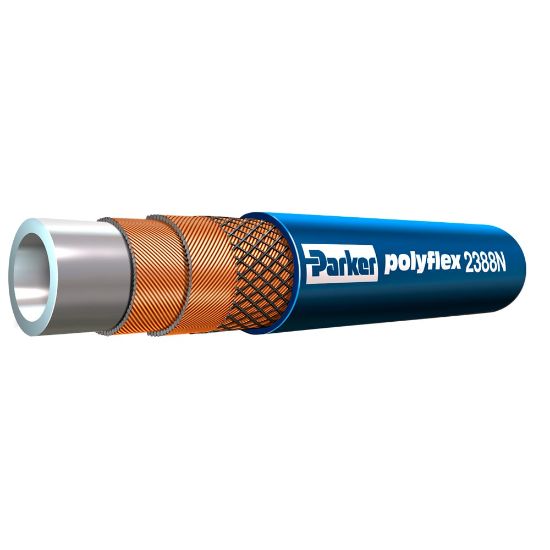

2388N-08V12 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	21 in stock

SKU 2388N-08V12

$22.73/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Cover Color	Blue	Maximum Working Pressure (psi)	15,950
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	212 °F
Size	-8	Cover Material	Polyurethane
Minimum Bend Radius	4-3/4 inch	Inside Diameter	12.7 mm
Media	Petroleum Hydraulic Fluids	Design Factor	2.5:1
Specifications Met	DIN 1829-2	Maximum Operating Pressure	110 MPa
Weight	0.54 lb/ft	Outside Diameter	0.910 inch
Compatible Fitting	BS Series	Hose Inner Tube Material	Polyamide 12
Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
