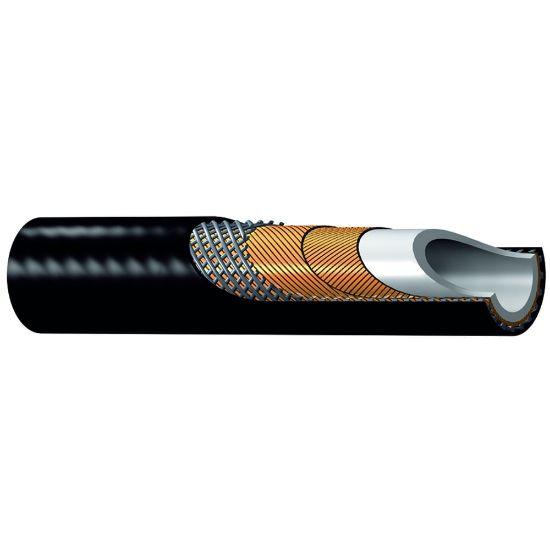

2390N-04V13 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2390N-04V13

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-4
Cover Color	Green	Maximum Operating Pressure	7,000 psi
Minimum Operating Temperature	-40 °F	Size	-4
Inside Diameter	1/4 inch	Design Factor	4:1
Minimum Bend Radius	2-3/4 inch	Hose Inner Tube Material	Polyamide (PA)
Media	Petroleum Hydraulic Fluids	Maximum Operating Temperature	55 °C
Specifications Met	ISO 13628-5	Maximum Operating Pressure	49 MPa
Weight	0.25 kg/m	Cover Material	Polyurethane Sea Water Resistant
Outside Diameter	13.3 mm	Compatible Fitting	E3 Series
Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
