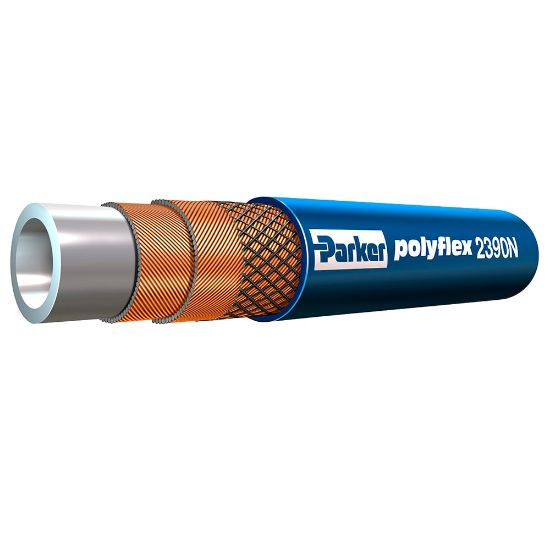

High Pressure Hydraulic Hose - 2390N - 2390N-16V12

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.
Availability:
Backordered
SKU 2390N-16V12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-16
Cover ColorBlueMaximum Operating PressureObsolete
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Design Factor4:1Maximum Operating Temperature212 °F
Cover MaterialPolyurethaneApplicationSubsea BOP
Inside Diameter25.4 mmSize-16
MediaPetroleum Hydraulic FluidsHose Inner Tube MaterialMethanol Washed
Specifications MetISO 13628-5Maximum Operating Pressure4060 psi
Weight1.17 kg/mOutside Diameter1.380 inch
Compatible Fitting9X SeriesMinimum Bend Radius11 inch
Hose Reinforcement Material2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
California Residents: Prop-65 Warning
Product resources
