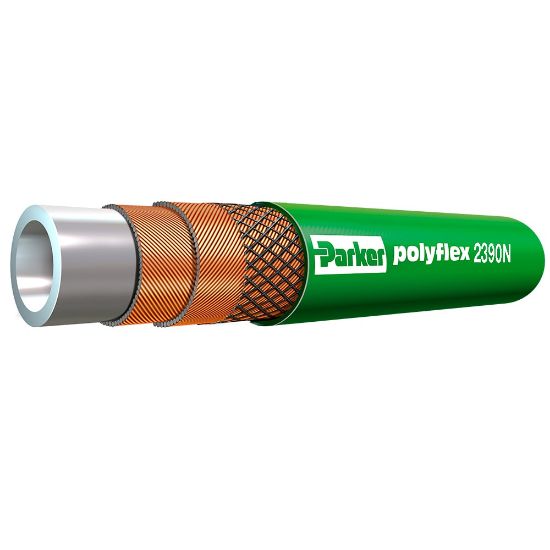

Picture of High Pressure Hydraulic Hose - 2390N - 2390N-16V13

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2390N - 2390N-16V13

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.
Availability:
Backordered
SKU 2390N-16V13
$218.12
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (size)-16
Cover ColorGreenMaximum Operating Pressure4,000 psi
DivisionParflex DivisionMinimum Operating Temperature-40 °C
Design Factor4:1Maximum Operating Temperature100 °C
Minimum Bend Radius280 mmCover MaterialPolyurethane
Inside Diameter1 inchSize-16
MediaPetroleum Hydraulic FluidsHose Inner Tube MaterialMethanol Washed
ApplicationPortable EquipmentSpecifications MetISO 13628-5
Maximum Operating Pressure280 barWeight0.79 lb/ft
Outside Diameter1.380 inchCompatible FittingE4 Series
Hose Reinforcement Material2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
