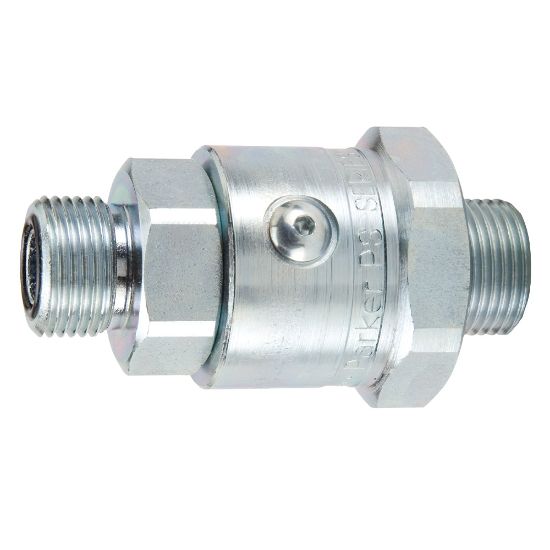

PS121JMJM-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	3 in stock

SKU PS121JMJM-12-12

$153.24/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	InLine
Body Size (inch)	3/4	Shaft Connection Style	Male Seal-Lok
Seal Material	Nitrile	Housing Connection Style	Male Seal-Lok
Maximum Working Pressure (psi)	5000	Housing Connection Thread Size (inch)	1 3/16 - 12 UN
Shaft Connection Thread Size (inch)	1 3/16 - 12 UN	Dimensional Weight	0.12464028776978417 lb
Configuration	Inline	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate
