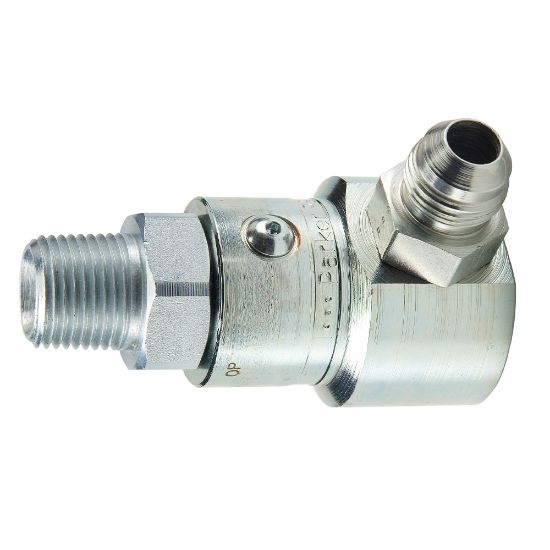

PS1290103-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	32 in stock

SKU PS1290103-12-12

$171.53/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	90 degree
Maximum Working Pressure (psi)	5000	Housing Connection Style	Male JIC 37 degree
Shaft Connection Style	Male NPTF	Shaft Connection Thread Size (inch)	3/4 - 14 NPTF
Seal Material	Nitrile	Housing Connection Thread Size (inch)	1 1/16 - 12 UN
Body Size (inch)	3/4	Configuration	90 degree
Minimum Operating Temperature	-40 °F	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Temperature	250 °F
