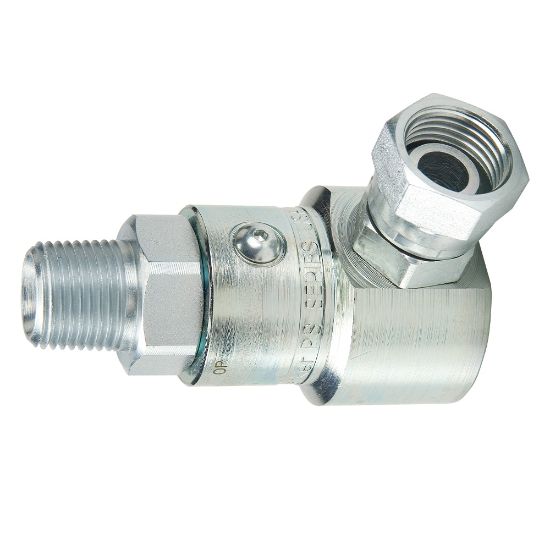

PS1290107-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4 in stock

SKU PS1290107-12-12

$198.91/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/4
Housing Connection Thread Size (inch)	3/4 - 14 NPSM	Configuration	90 degree
Housing Connection Style	Female NPSM Pipe Swivel	Maximum Working Pressure (psi)	3000
Shaft Connection Style	Male NPTF	Shaft Connection Thread Size (inch)	3/4 - 14 NPTF
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Configuration	90 degree
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
