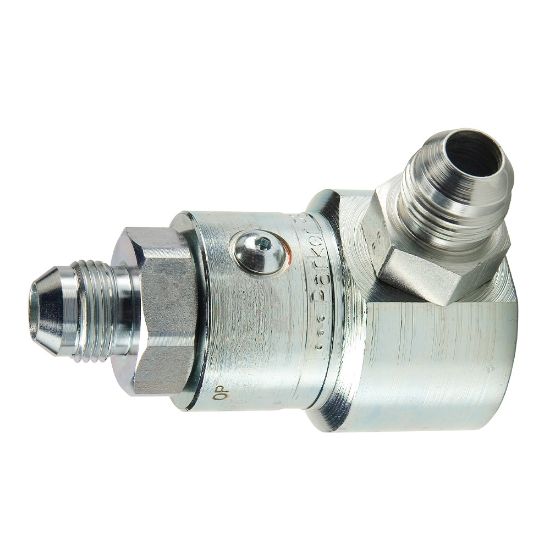

PS1290303-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PS1290303-12-12

$195.15/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/4
Housing Connection Thread Size (inch)	1 1/16 - 12 UN	Housing Connection Style	Male JIC 37 degree
Shaft Connection Style	Male JIC 37 degree	Maximum Working Pressure (psi)	5000
Shaft Connection Thread Size (inch)	1 1/16 - 12 UN	Seal Material	Nitrile
Configuration	90 degree	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Steel
Configuration	90 degree	Plating Type	Zinc with clear trivalent chromate
