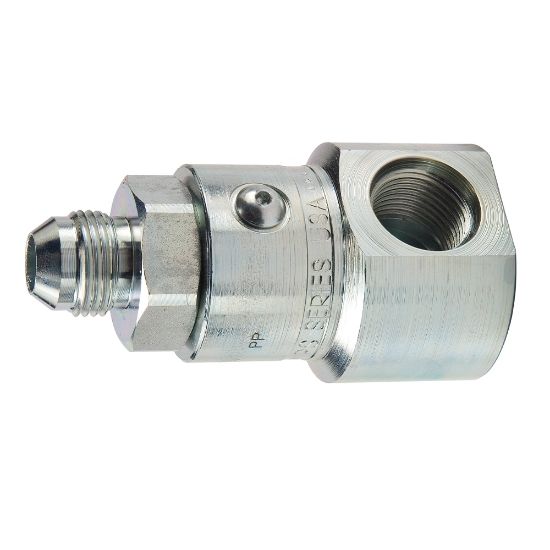

PS1290310-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PS1290310-12-12

$182.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	90 degree	Housing Connection Thread Size (inch)	1 1/16 - 12 UN
Shaft Connection Style	Male JIC 37 degree	Body Size (inch)	3/4
Housing Connection Style	Female SAE Straight Thread	Maximum Working Pressure (psi)	5000
Shaft Connection Thread Size (inch)	1 1/16 - 12 UN	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Body Material	Steel	Configuration	90 degree
