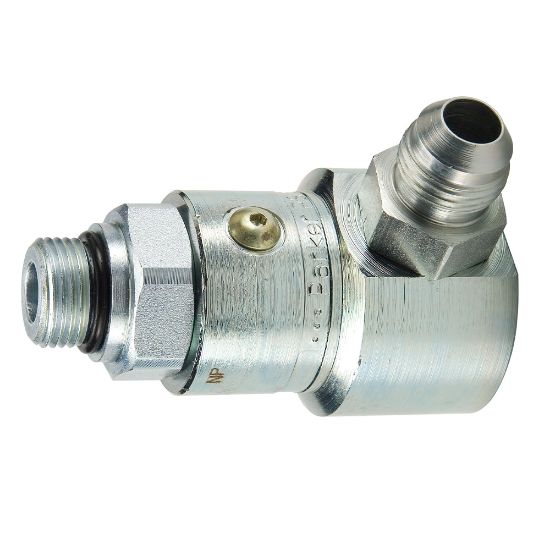

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1290503-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1290503-12-12

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1290503-12-12
$177.72
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShaft Connection StyleMale SAE O-ring Straight Thread
Seal MaterialNitrileHousing Connection StyleMale JIC 37 degree
Body Size (inch)3/4Housing Connection Thread Size (inch)1 1/16 - 12 UN
Shaft Connection Thread Size (inch)1 1/16 - 12 UNConfiguration90 degree
Maximum Working Pressure (psi)5000Dimensional Weight0.22945143884892086 lb
Body MaterialSteelMinimum Operating Temperature-40 °F
Plating TypeZinc with clear trivalent chromateMaximum Operating Temperature250 °F
Configuration90 degreeDivisionQuick Coupling Division
