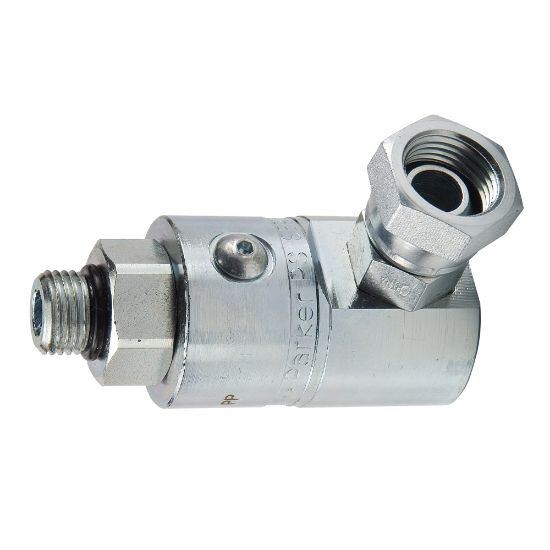

PS1290507-12-12 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU PS1290507-12-12

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Connection Style	Female NPSM Pipe Swivel
Shaft Connection Thread Size (inch)	1 1/16 - 12 UN	Seal Material	Nitrile
Configuration	90 degree	Shaft Connection Style	Male SAE O-ring Straight Thread
Maximum Working Pressure (psi)	3000	Housing Connection Thread Size (inch)	3/4 - 14 NPSM
Body Size (inch)	3/4	Minimum Operating Temperature	-40
Maximum Operating Temperature	250	Body Material	Steel
Plating Type	Zinc with clear trivalent chromate	Configuration	90 degree

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
