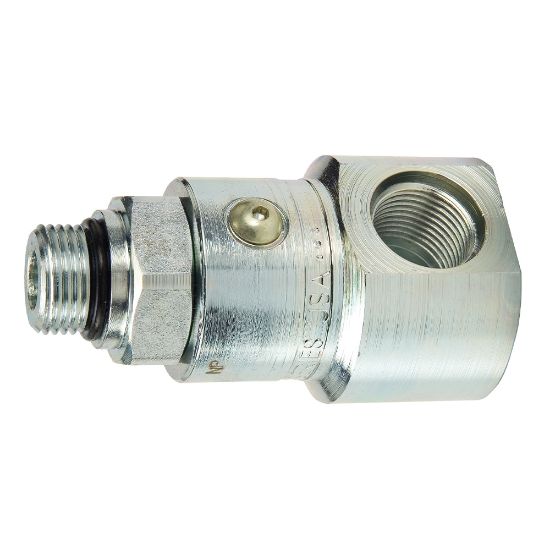

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1290510-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1290510-12-12

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1290510-12-12
$197.22
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody Size (inch)3/4
Shaft Connection StyleMale SAE O-ring Straight ThreadHousing Connection Thread Size (inch)1 1/16 - 12 UN
Housing Connection StyleFemale SAE Straight ThreadConfiguration90 degree
Maximum Working Pressure (psi)5000Shaft Connection Thread Size (inch)1 1/16 - 12 UN
Seal MaterialNitrileBody MaterialSteel
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Configuration90 degreePlating TypeZinc with clear trivalent chromate
DivisionQuick Coupling Division
