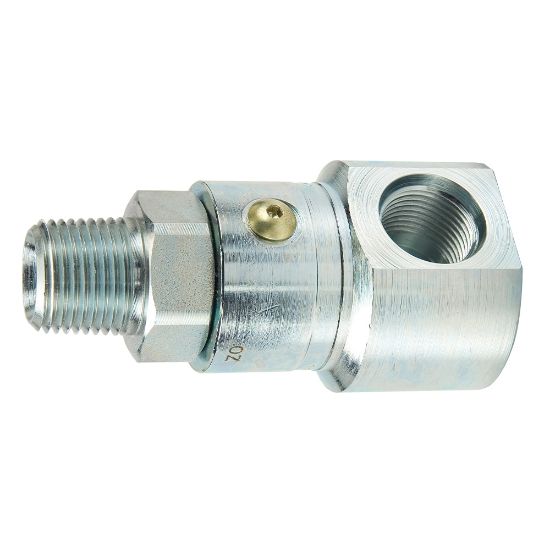

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1690110-16-16

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1690110-16-16

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1690110-16-16
$236.98
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialNitrile
Shaft Connection Thread Size (inch)1 - 11 1/2 NPTFConfiguration90 degree
Shaft Connection StyleMale NPTFHousing Connection StyleFemale SAE Straight Thread
Housing Connection Thread Size (inch)1 5/16 - 12 UNMaximum Working Pressure (psi)5000
Body Size (inch)1Plating TypeZinc with clear trivalent chromate
DivisionQuick Coupling DivisionMinimum Operating Temperature-40 °F
Body MaterialSteelMaximum Operating Temperature250 °F
Configuration90 degree
