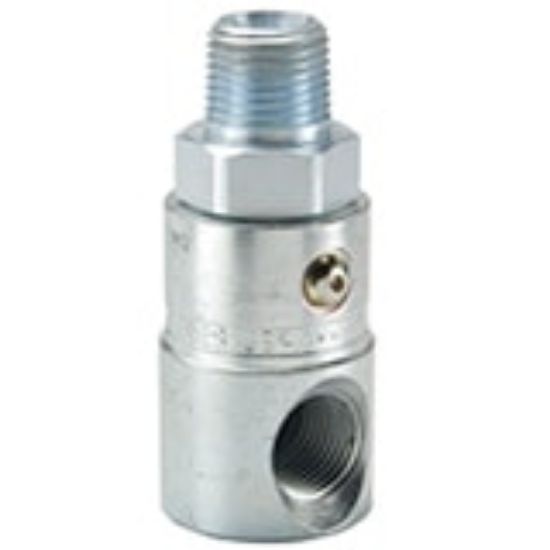

PS490102-4-4 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU PS490102-4-4

$118.05/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shaft Connection Style	Male NPTF
Shaft Connection Thread Size (inch)	1/4 - 18 NPTF	Body Size (inch)	1/4
Housing Connection Style	Female NPTF	Housing Connection Thread Size (inch)	1/4 - 18 NPTF
Maximum Working Pressure (psi)	5000	Configuration	90 degree
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Steel
Configuration	90 degree	Plating Type	Zinc with clear trivalent chromate

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
