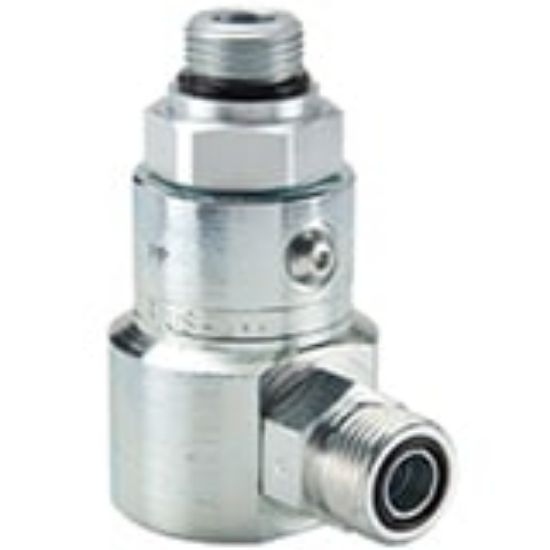

PS6905JM-6-6 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2 Limited Stock

SKU PS6905JM-6-6

$119.67/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Housing Connection Thread Size (inch)	11/16 - 16 UN	Configuration	90 degree
Maximum Working Pressure (psi)	5000	Housing Connection Style	Male Seal-Lok
Shaft Connection Style	Male SAE O-ring Straight Thread	Shaft Connection Thread Size (inch)	9/16 - 18 UNF
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Material	Steel
Configuration	90 degree	Dimensional Weight	0.12464028776978417 lb
Plating Type	Zinc with clear trivalent chromate
