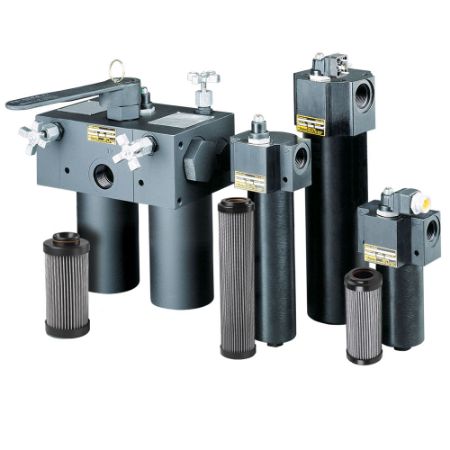

High Pressure Inline/Duplex Filter 15P/30P/30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Filter Series has a rated fatigue pressure of up to 2,000psi. With its high pressure capability and lightweight design, the 15P/30P Series is an ideal solution for mobile applications. Single and double length bowls are available to cover a wide range of flow rates up to 45gpm. The duplex option comes with a diverter valve to allow for element change out on critical applications where the system cannot be shut down. Various seal, indicator, and porting options make it easy for users to integrate the 15P/30P Series into their hydraulic system.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | Options | Flow Rate | Micron Rating | Seal Material | Indicator Type | Mounting Style | Port Connection Type | Product Style | Weight | Options | Flow Rate | Port Type | Micron Rating | Seal Material | For Fluid Type | Indicator Type | Compatible Element | Filter Element Type | Indicator Pressure Setting | Bypass Valve Pressure Rating | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15P102QBE2KS121 | Backordered | Backordered | $678.15/each | EA | None | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | electrical/visual DIN 43650 style connection | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 15.0 Gal/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | 932610Q | Cartridge | 3.5 bar | 50.0 psid | 225.0 °F | |
| 15P102QBE2KS124 | Backordered | Backordered | POR | EA | SAE-4 drain port on bowl | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | electrical/visual DIN 43650 style connection | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | SAE-4 drain port on bowl | 56.0 L/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | 932610Q | Cartridge | 3.5 bar | 50.0 psid | 225.0 °F | |
| 15P102QBE2SKX1 | Backordered | Backordered | POR | EA | None | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | electrical/visual DIN 43650 style connections-side mounted | inline | manifold ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 56.0 L/min | manifold ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connections-side mounted | 932610Q | Cartridge | 50 psi | 50.0 psid | 225.0 °F | |
| 15P102QBE2SKX4 | Backordered | Backordered | $786.17/each | EA | SAE-4 drain port on bowl | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | electrical/visual DIN 43650 style connections-side mounted | inline | manifold ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | SAE-4 drain port on bowl | 56.0 L/min | manifold ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connections-side mounted | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 225.0 °F | |
| 15P102QBM2KS121 | Backordered | Backordered | $566.03/each | EA | None | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 56.0 L/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | |
| 15P102QBM2KS122 | Backordered | Backordered | POR | EA | No bypass | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | No bypass | 56.0 L/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | |
| 15P102QBM2KS1221 | Backordered | Backordered | $607.05/each | EA | drain port and no bypass | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | drain port and no bypass | 15.0 Gal/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | |
| 15P102QBM2KS124 | Backordered | Backordered | $607.05/each | EA | SAE-4 drain port on bowl | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | SAE-4 drain port on bowl | 56.0 L/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | |
| 15P102QBM2SKX1 | Backordered | Backordered | $633.03/each | EA | None | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | visual automatic reset-side mounted | inline | manifold ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 56.0 L/min | manifold ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset-side mounted | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 225.0 °F | |
| 15P102QBM2SKX4 | Backordered | Backordered | $674.05/each | EA | SAE-4 drain port on bowl | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | visual automatic reset-side mounted | inline | manifold ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | SAE-4 drain port on bowl | 15.0 Gal/min | manifold ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset-side mounted | 932610Q | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | |
| 15P102QBPKS121 | Backordered | Backordered | POR | EA | None | 15 GPM ( 56 LPM) | 02Q Microglass | Nitrile | indicator pressure port only | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 56.0 L/min | SAE-12 ports | 02Q Microglass | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | 932610Q | Cartridge | 3.5 bar | 50.0 psid | 107.0 °C | |
| 15P102QEM2KS121 | Backordered | Backordered | $619.35/each | EA | None | 15 GPM ( 56 LPM) | 02Q Microglass | Ethylene Propylene | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 56.0 L/min | SAE-12 ports | 02Q Microglass | Ethylene Propylene | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932610Q | Cartridge | 50 psi | 50.0 psid | 121.0 °C | |
| 15P102QHBE2KS122 | Backordered | Backordered | $769.79/each | EA | No bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Nitrile | electrical/visual DIN 43650 style connection | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | No bypass | 15.0 Gal/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | 932613Q | Cartridge | 3.5 bar | 50.0 psid | 107.0 °C | |
| 15P102QHBM2KS121 | Backordered | 4 in stock | $720.34/each | EA | None | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Nitrile | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | None | 15.0 Gal/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932613Q | Cartridge | 50 psi | 3.5 bar | 225.0 °F | |
| 15P102QHBM2KS122 | Backordered | Backordered | $657.67/each | EA | No bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Nitrile | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | No bypass | 56.0 L/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932613Q | Cartridge | 50 psi | 50.0 psid | 225.0 °F | |
| 15P102QHBM2SKS122 | Backordered | Backordered | POR | EA | No bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Nitrile | visual automatic reset-side mounted | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | No bypass | 56.0 L/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset-side mounted | 932613Q | Cartridge | 3.5 bar | 50.0 psid | 107.0 °C | |
| 15P102QHBPKS122 | Backordered | Backordered | $602.99/each | EA | No bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Nitrile | indicator pressure port only | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | No bypass | 56.0 L/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | 932613Q | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | |
| 15P102QHBPKS1221 | Backordered | Backordered | POR | EA | drain port and no bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Nitrile | indicator pressure port only | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | drain port and no bypass | 56.0 L/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Nitrile | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | 932613Q | Cartridge | 50 psi | 3.5 bar | 107.0 °C | |
| 15P102QHEM2KS122 | Backordered | Backordered | POR | EA | No bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Ethylene Propylene | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | No bypass | 15.0 Gal/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Ethylene Propylene | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932613Q | Cartridge | 3.5 bar | 3.5 bar | 121.0 °C | |
| 15P102QHEM2KS1221 | Backordered | Backordered | POR | EA | drain port and no bypass | 15 GPM ( 56 LPM) | 02Q high collapse microglass (2000 psid) | Ethylene Propylene | Visual automatic reset | inline | SAE-12 ports | Hydraulic Filter | 3.5 lb ( 1.6 kg) | drain port and no bypass | 15.0 Gal/min | SAE-12 ports | 02Q High Collapse Microglass (2000 psid) | Ethylene Propylene | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | 932613Q | Cartridge | 3.5 bar | 3.5 bar | 121.0 °C |
