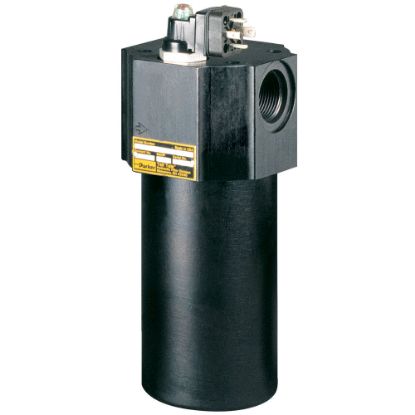

High Pressure Inline/Duplex Filter 15P/30P/30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Filter Series has a rated fatigue pressure of up to 2,000psi. With its high pressure capability and lightweight design, the 15P/30P Series is an ideal solution for mobile applications. Single and double length bowls are available to cover a wide range of flow rates up to 45gpm. The duplex option comes with a diverter valve to allow for element change out on critical applications where the system cannot be shut down. Various seal, indicator, and porting options make it easy for users to integrate the 15P/30P Series into their hydraulic system.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | Seal Material | Micron Rating | Indicator Type | Options | Mounting Style | Port Connection Type | Flow Rate | Seal Material | Filter Element Type | Indicator Pressure Setting | Bypass Valve Pressure Rating | Maximum Operating Temperature | Product Style | Micron Rating | Options | For Fluid Type | Indicator Type | Port Type | Weight | Flow Rate | Compatible Element |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30P210QBM2KS164 | Backordered | Backordered | $795.05/each | EA | Nitrile | 10Q Microglass | Visual automatic reset | SAE-4 drain port on bowl | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | Hydraulic Filter | 10Q Microglass | SAE-4 drain port on bowl | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932630Q | |
| 30P210QBM2SKS164 | Backordered | Backordered | $795.05/each | EA | Nitrile | 10Q Microglass | visual automatic reset-side mounted | SAE-4 drain port on bowl | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 50.0 psid | 107.0 °C | Hydraulic Filter | 10Q Microglass | SAE-4 drain port on bowl | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset-side mounted | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QBPKS161 | Backordered | Backordered | $699.35/each | EA | Nitrile | 10Q Microglass | indicator pressure port only | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | Hydraulic Filter | 10Q Microglass | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932630Q | |
| 30P210QEE2KS161 | Backordered | Backordered | POR | EA | Ethylene Propylene | 10Q Microglass | electrical/visual DIN 43650 style connection | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Ethylene Propylene | Cartridge | 50 psi | 50.0 psid | 121.0 °C | Hydraulic Filter | 10Q Microglass | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QEPKS161 | Backordered | Backordered | $752.67/each | EA | Ethylene Propylene | 10Q Microglass | indicator pressure port only | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Ethylene Propylene | Cartridge | 3.5 bar | 3.5 bar | 121.0 °C | Hydraulic Filter | 10Q Microglass | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932630Q | |
| 30P210QHBE2KS162 | Backordered | Backordered | $1,064.62/each | EA | Nitrile | 10Q high collapse microglass (2000 psid) | electrical/visual DIN 43650 style connection | No bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 3.5 bar | 107.0 °C | Hydraulic Filter | 10Q High Collapse Microglass (2000 psid) | No bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932633Q | |
| 30P210QHBE2KS1621 | Backordered | Backordered | POR | EA | Nitrile | 10Q high collapse microglass (2000 psid) | electrical/visual DIN 43650 style connection | drain port and no bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 3.5 bar | 225.0 °F | Hydraulic Filter | 10Q High Collapse Microglass (2000 psid) | drain port and no bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932633Q | |
| 30P210QHBM2KS162 | Backordered | Backordered | $952.50/each | EA | Nitrile | 10Q high collapse microglass (2000 psid) | Visual automatic reset | No bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 50.0 psid | 107.0 °C | Hydraulic Filter | 10Q High Collapse Microglass (2000 psid) | No bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932633Q | |
| 30P210QHVM2KS161 | Backordered | Backordered | POR | EA | Fluorocarbon | 10Q high collapse microglass (2000 psid) | Visual automatic reset | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 50 psi | 50.0 psid | 275.0 °F | Hydraulic Filter | 10Q High Collapse Microglass (2000 psid) | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932633Q | |
| 30P210QVE2KS161 | Backordered | Backordered | $919.47/each | EA | Fluorocarbon | 10Q Microglass | electrical/visual DIN 43650 style connection | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 50 psi | 3.5 bar | 275.0 °F | Hydraulic Filter | 10Q Microglass | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QVE2KS164 | Backordered | Backordered | $960.49/each | EA | Fluorocarbon | 10Q Microglass | electrical/visual DIN 43650 style connection | SAE-4 drain port on bowl | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 50 psi | 3.5 bar | 275.0 °F | Hydraulic Filter | 10Q Microglass | SAE-4 drain port on bowl | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QVM2KS161 | Backordered | Backordered | POR | EA | Fluorocarbon | 10Q Microglass | Visual automatic reset | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 50 psi | 50.0 psid | 135.0 °C | Hydraulic Filter | 10Q Microglass | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932630Q | |
| 30P210QVM2KS164 | Backordered | Backordered | $848.37/each | EA | Fluorocarbon | 10Q Microglass | Visual automatic reset | SAE-4 drain port on bowl | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 50 psi | 50.0 psid | 135.0 °C | Hydraulic Filter | 10Q Microglass | SAE-4 drain port on bowl | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QVM2SKS164 | Backordered | Backordered | $848.37/each | EA | Fluorocarbon | 10Q Microglass | visual automatic reset-side mounted | SAE-4 drain port on bowl | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 3.5 bar | 50.0 psid | 135.0 °C | Hydraulic Filter | 10Q Microglass | SAE-4 drain port on bowl | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset-side mounted | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QVPKS161 | Backordered | Backordered | $752.67/each | EA | Fluorocarbon | 10Q Microglass | indicator pressure port only | None | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 3.5 bar | 3.5 bar | 275.0 °F | Hydraulic Filter | 10Q Microglass | None | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 932630Q | |
| 30P210QVPKS164 | Backordered | Backordered | $793.69/each | EA | Fluorocarbon | 10Q Microglass | indicator pressure port only | SAE-4 drain port on bowl | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 3.5 bar | 50.0 psid | 135.0 °C | Hydraulic Filter | 10Q Microglass | SAE-4 drain port on bowl | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 932630Q | |
| 30P210QXBE2KS162 | Backordered | Backordered | POR | EA | Nitrile | 10Q high collapse microglass (3000 psid) | electrical/visual DIN 43650 style connection | No bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 50 psi | 50.0 psid | 225.0 °F | Hydraulic Filter | 10Q High Collapse Microglass (3000 psid) | No bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 933583Q | |
| 30P210QXBM2KS162 | Backordered | Backordered | $1,060.58/each | EA | Nitrile | 10Q high collapse microglass (3000 psid) | Visual automatic reset | No bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 50 psi | 50.0 psid | 225.0 °F | Hydraulic Filter | 10Q High Collapse Microglass (3000 psid) | No bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | visual automatic reset | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 933583Q | |
| 30P210QXBPKS1621 | Backordered | Backordered | $1,046.92/each | EA | Nitrile | 10Q high collapse microglass (3000 psid) | indicator pressure port only | drain port and no bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Nitrile | Cartridge | 3.5 bar | 50.0 psid | 107.0 °C | Hydraulic Filter | 10Q High Collapse Microglass (3000 psid) | drain port and no bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | indicator pressure port only | SAE-16 ports | 8.7 lb (3.9 kg) | 55.0 Gal/min | 933583Q | |
| 30P210QXVE2KS1621 | Backordered | Backordered | POR | EA | Fluorocarbon | 10Q high collapse microglass (3000 psid) | electrical/visual DIN 43650 style connection | drain port and no bypass | inline | SAE-16 ports | 55 GPM (208 LPM) | Fluorocarbon | Cartridge | 3.5 bar | 3.5 bar | 275.0 °F | Hydraulic Filter | 10Q High Collapse Microglass (3000 psid) | drain port and no bypass | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at HFF.techsupport@support.parker.com or call 800-253-1258 | electrical/visual DIN 43650 style connection | SAE-16 ports | 8.7 lb (3.9 kg) | 208.0 L/min | 933583Q |
