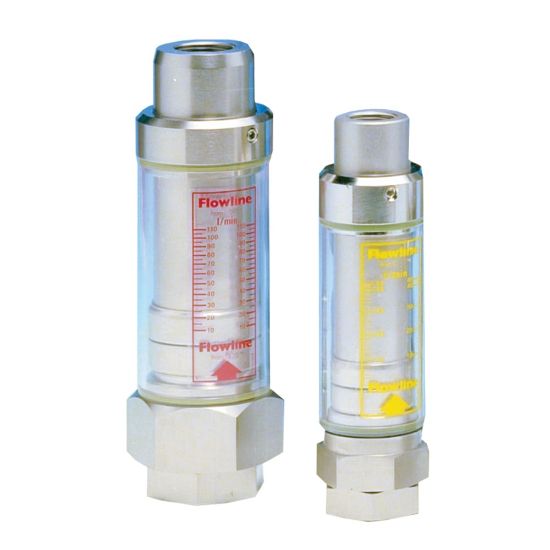

FM26322112 - High Pressure Mechanical Flowmeter - Flowline

The Flowline Series is a range of rugged inline mechanical flowmeters that provide visual indication of fluid flow in hydraulic systems. Capable of measuring flows ranging from 1 - 360 L/PM. Maximum allowable working pressure: 350 bar (5076 psi).

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU FM26322112

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Brass
For Fluid Type	Oil	Flow Rate	5 to 55 l/min
Materials of Construction	Stainless Steel	Port Size	3/4 inch
For Fluid Type	Oil	Product Style	Flow Meter
Operating Pressure	350 bar	Seal Material	Fluoroelastomer
Industry	Industrial & Chemical Processing	Specifications Met	Pressure Directive
Accuracy	+/- 5% FSD	Height	58 mm
Length	190 mm	Diameter	58 mm
Flow Rate	5 to 55 L/min	Port Type	BSP Parallel Threads
Body Material	Nickel Plate	Sensing Method	Variable Orifice Flow Meter
