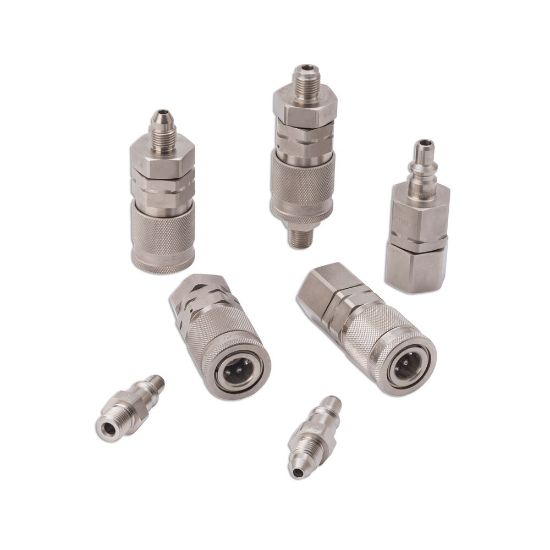

HP006-0-A9 - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	1 Limited Stock

SKU HP006-0-A9

$588.96/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Thread Type	Male	Connection Style	Type "M"
Flow Diameter (inch)	0.24	Connection Size (inch)	9/16" - 18 UNF
Body Material	Alloy Steel	Flow Diameter	6 mm
Hex Size	30.23 mm	Connection Type	Type "M"
Maximum Operating Pressure	30000 psi	Connection Size	9/16"-18 UNF inch
Overall Length	83.82 mm	Coupling Half	Coupler
Materials of Construction	Alloy Steel
