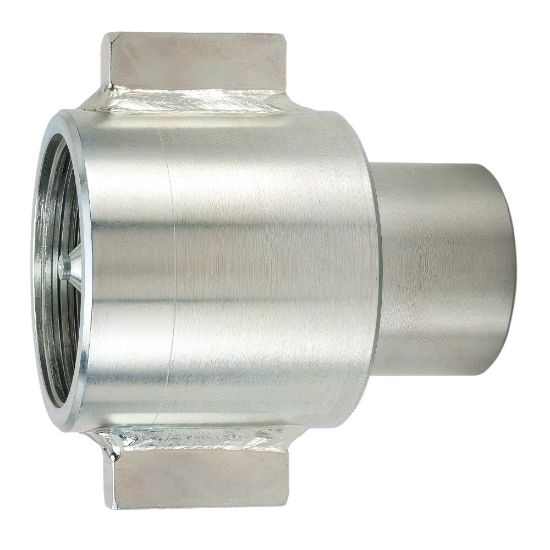

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

75C12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	3 in stock

SKU 75C12-12F

$132.66/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/4 - 14	Connection Type	Female NPSF
Body Size (inch)	3/4	Sleeve Type	Hex nut
Maximum Operating Pressure	5000	Specifications Met	na
Minimum Operating Temperature	-40 °F	Body Material	Steel
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Valve Type	Poppet
Hex Size	1.31 inch	Dimensional Weight	0.22945143884892086 lb
