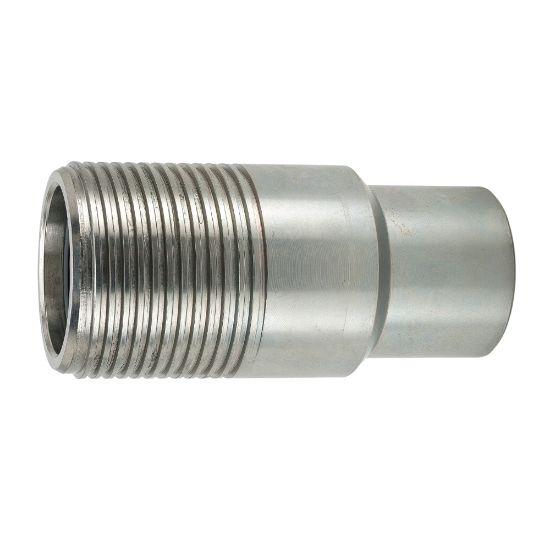

75N16-16F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	8 in stock

SKU 75N16-16F

$149.11/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	5000
Coupling Half	Male Nipple	Specifications Met	na
Sleeve Type	na	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPSF	Body Size (inch)	1
Dimensional Weight	0.22945143884892086 lb	Minimum Operating Temperature	-40 °F
Body Material	Steel	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Hex Size	2 inch
Valve Type	Poppet	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
