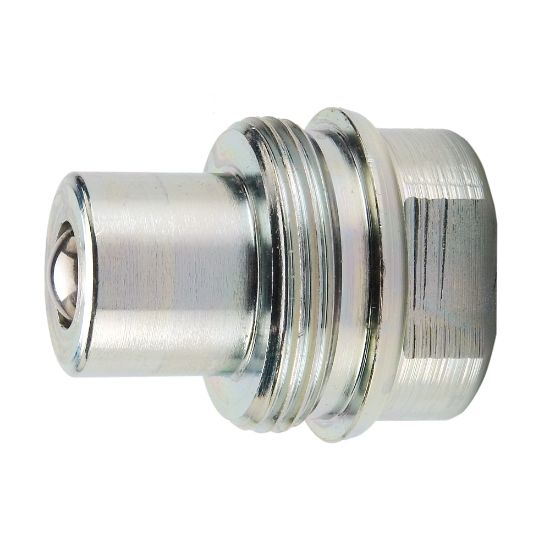

3010-2 - High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series

Name: 3010-2 - High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series
SKU: 3010-2
Price: 28.48 USD
Availability: InStock

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

Availability:

67 in stock

TOPEKA, KS	20
Kansas City, KS	16
Peoria, IL	7
COLUMBIA, MO	4
Kansas City, KS	4
Joplin, MO	4
WICHITA, KS	3
Springfield, MO	3
Olivette, MO	3
Decatur, IL	3

Partner Available:

706 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 3010-2

$28.48/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Female NPTF	Connection Thread Size	1/4 - 18
Body Size	1/4 inch	Body Material	Steel
Maximum Operating Pressure	10000 psi	Plating Type	Zinc with clear trivalent chromate
Seal Material	Polyurethane	Hex Size	0.88 inch
Dimensional Weight	0.01999400479616307 lb	Minimum Operating Temperature	-22 °F
Maximum Operating Temperature	230 °F	Flow Rate	3 Gal/min
Valve Type	Ball

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
