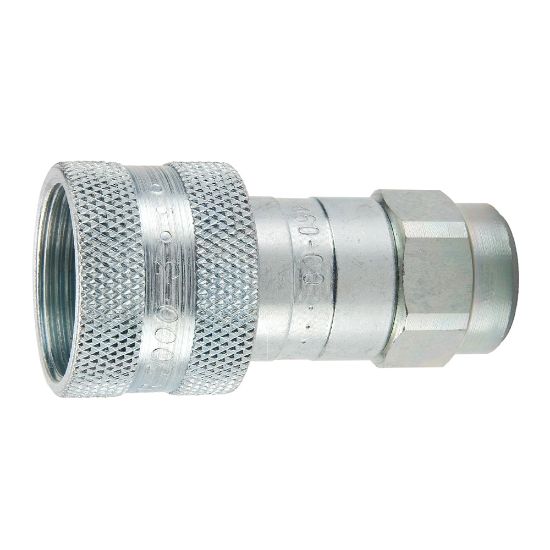

Picture of High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series - 3050-3-231

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series - 3050-3-231

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.
Availability:
6 in stock
TOPEKA, KS6
SKU 3050-3-231
$51.36
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACoupling HalfFemale Coupler
Connection TypeFemale NPTFBody Size3/8 inch
Connection Thread Size3/8 - 18Body MaterialSteel
Hex Size1 inchMaximum Operating Pressure10000 psi
DivisionQuick Coupling DivisionPlating TypeZinc with clear trivalent chromate
ApplicationHigh Pressure HydraulicsProduct TypeThread to Connect
Seal MaterialPolyurethaneMinimum Operating Temperature-22 °F
Maximum Operating Temperature230 °FFlow Rate6 Gal/min
Valve TypeBallDimensional Weight0.05341726618705036 lb
