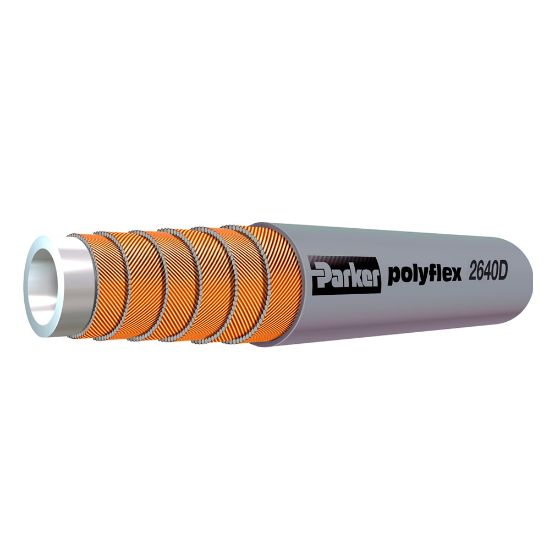

Picture of High Pressure Water Jet Hose - 2640D - 2640D-03V37

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Water Jet Hose - 2640D - 2640D-03V37

High Pressure 2640D water jet hoses handles pressures up to 40,600 psi (4,000 bar), making it ideal for water jet cutting equipment and ship washdown applications.
Availability:
Backordered
SKU 2640D-03V37
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/16
NotesObsolete - see PFX25-03DivisionParflex Division
Minimum Operating Temperature-10 °CMediaWater
Cover MaterialPolyamide (PA)Inside Diameter4.8 mm
Design Factor2.5:1Maximum Operating Temperature158 °F
Specifications MetDIN 1829-2Hose Inner Tube MaterialPolyoxymethylene (POM)
ApplicationWaterblastingMinimum Bend Radius175 mm
Maximum Operating Pressure2500 barWeight0.41 kg/m
Outside Diameter12.9 mmCompatible Fitting2X Series
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel Wire
