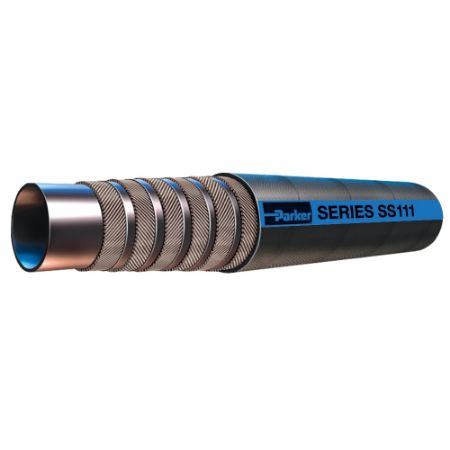

High Pressure Water Jetting Hose, Series SS111
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series SS111 High Pressure Water Jetting Hose provides excellent high pressure, heavy duty service across multiple applications. The hose construction is designed for high volume/high pressure flow for efficient clean-up and transfer, and the cover is resistant to abrasion and weathering for maximum performance.
Markets:
• Construction
• General Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black SBR for abrasion resistant service to 180°F.
• Reinforcement: Multiple textile plies for strength and durability.
• Cover: Black SBR for abrasion and weathering resistance and durability.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Slurries
• Water
- usage
• Cleaning
• Stripping
• Washdown
• Shipyards
• Subsea structure cleaning
Safety/Technical:
• Design Factor: 4:1
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines
Read More...Markets:
• Construction
• General Industrial
• Oil & Gas
Features/Benefits:
• Tube: Black SBR for abrasion resistant service to 180°F.
• Reinforcement: Multiple textile plies for strength and durability.
• Cover: Black SBR for abrasion and weathering resistance and durability.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Slurries
• Water
- usage
• Cleaning
• Stripping
• Washdown
• Shipyards
• Subsea structure cleaning
Safety/Technical:
• Design Factor: 4:1
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Maximum Operating Pressure | Hose Reinforcement Material | Minimum Bend Radius | Hose Inner Tube Material | Maximum Operating Temperature | Inside Diameter | Weight | Minimum Operating Temperature | Cover Material | Outside Diameter | Media | Cover Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS111-3000 | Backordered | 73 in stock | $49.59/foot | FT | 3 | 800 psi | 6 Plies of Textile | n/a | Black | 180 °F | 3 inch | 2.42 lb/ft | -40 °F | Styrene Butadiene Rubber (SBR) | 96.8 mm | Water | Black | |
| SS111-4000 | Backordered | Backordered | POR | FT | 4 | 800 psi | 6 Plies of Textile | n/a | Styrene Butadiene Rubber (SBR) | 82 °C | 101.6 mm | 3.10 lb/ft | -40 °F | Styrene Butadiene Rubber (SBR) | 4.8 inch | Water | Black | |
| SS111-6000 | Backordered | Backordered | POR | FT | 6 | 35 bar | 8 Plies of Textile | n/a | Black | 180 °F | 6 inch | 5.23 lb/ft | -40 °F | Styrene Butadiene Rubber (SBR) | 177.8 mm | Water | Black |
