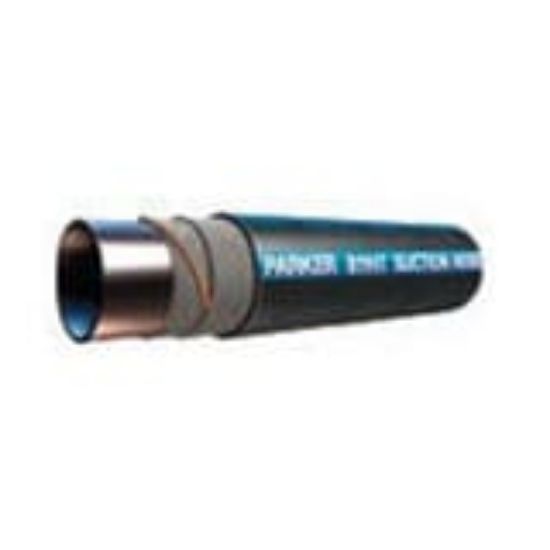

High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose - 811HT-32

Name: High Temperature Suction and Return Line Hose 62-300 PSI – 811HT Hose - 811HT-32
SKU: 811HT-32

Parker’s 811HT hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Availability:

Backordered

SKU 811HT-32

$47.61

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Division	Hose Products Division	Maximum Operating Temperature	125 °C
Design Factor	4:1	Minimum Bend Radius	152 mm
Inside Diameter	2 inch	Hose Cover Type	Standard Cover
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Application	Petroleum Base Hydraulic Fluids	Media	Petroleum Hydraulic Fluids
Cover Material	MSHA Approved	Outside Diameter	2.500 inch
Minimum Operating Temperature	-46 °C	Vacuum Pressure Rating	95 kPa
Specifications Met	MSHA	Nominal Hose Inside Diameter	50 mm
Maximum Operating Pressure	0.7 MPa	Weight	1.26 lb/ft
Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
