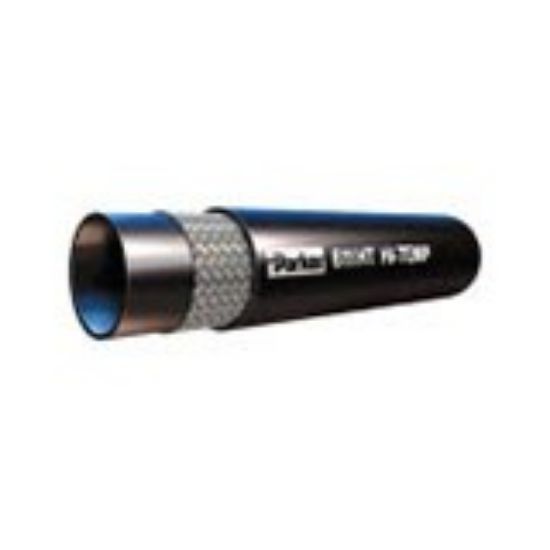

611HT-12 - High Temperature Transportation Hose 300-400 PSI – 611HT Hose

Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications.

Availability:	Backordered
Partner Available:	117 in stock

SKU 611HT-12

$17.32/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inside Diameter	-12
Maximum Operating Temperature	302 °F	Outside Diameter	1 inch
Inside Diameter	3/4 inch	Hose Reinforcement Material	1 Braid of Fiber
Minimum Operating Temperature	-55 °F	Hose Inner Tube Material	PKR® Rubber
Media	Fuels - Check fuel type with our catalogue chart.	Minimum Bend Radius	150 mm
Maximum Operating Pressure	2.1 MPa	Weight	0.36 kg/m
Compatible Fitting	HY Series	Specifications Met	SAE J517 and 100R6
Cover Material	Synthetic Rubber MSHA approved	Hose Cover Type	Synthetic Rubber MSHA Accepted
Nominal Hose Inside Diameter	18 mm

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
