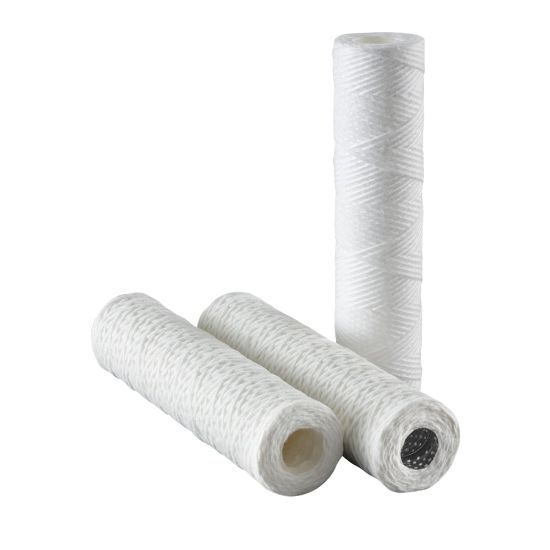

HONEYCOMB™ HFT Wound Depth Liquid Filter Cartridge - 113864

Name: HONEYCOMB™ HFT Wound Depth Liquid Filter Cartridge - 113864
SKU: 113864

Honeycomb™ wound depth filter cartridges remove contaminants from a wide range of liquid applications. Parker strings are known for superior quality and performance. Available from 0.5 to 150 micron ratings with a variety of string materials.

Availability:

Backordered

SKU 113864

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Micron Rating	10
End Cap Material	N/A	End Cap Configuration	DOE - Double Open End
Cartridge Length	10"	Industry	Oil & Gas and Industrial
Packaging	Standard	Core Material	316 Stainless Steel
Seal Material	N/A	Core Cover Material	N/A
Nominal Outside Diameter	2.4375"	Maximum Operating Temperature	200 F
Filter Material	Polypropylene (Non-FDA, Industrial Grade)	Model Number	ELMT T19R10S
Division	Industrial Process Filtration Division	Brand	PARKER
Division	Industrial Process Filtration Division	Technology	Filtration
Application	Liquid Particulate Filtration	Product Type	Filter Cartridge
Flow Direction	Outside-to-inside	Product Series	HFT
Quantity per Box	30	Filter Construction	Wound String
Nominal Inside Diameter	1"	Maximum Pressure Differential	60 PSID
Changeout Pressure Differential	30 PSID

Product resources

Literature and Reference Materials

HONEYCOMB™ HFT Wound Depth Liquid Filter Cartridge (PDF)
