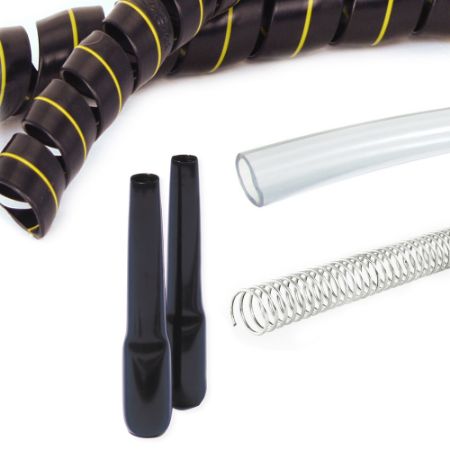

Hose Guards for Parflex Hoses

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hose Guards prolong the service life of hoses that are exposed to rugged, hard-wearing and harsh applications. They are available in several styles for protection against abrasion, wear and cutting on Parflex Hoses and can also be used to assist with preventing kinking of hose.

Parker High Strength Spiral Guard (PSG) delivers anti-crush performance, exceptionally smooth facing and rounded edges to prevent the spiral guard from getting caught on rough surfaces. It also features a low friction interior to minimize wear on the hose for superior performance in mining, automotive and mobile equipment applications.

Other designs include metallic spring Guards and armor Guards, guards for PTFE hoses, and PVC guards for protection against abrasion and extreme physical abuse. For complete product overviews and specifications, refer to the literature on the Product Support tab.

Markets:
• Mining
• Mobile Equipment
• Transportation
• Industrial

Features/Benefits:
• Protects hoses from abrasion, cutting and extreme physical abuse
• Assists in preventing kinking

Applications:
• Harsh environments and/or confined spaces where hoses need added crush or abrasion resistance

Available Hose Guard Styles:
• PV - Clear Vinyl Hose Guard
• HBR - Hose Bend Restrictor for use with HLB, MSH, 1035HT or 1035A Hose
• 5CNG/CNGLT - Black Vinyl CNG Hose Guard for 5CNG Hose
• SSG - Pre-made Spring Guards
• SG - Steel Spring Guards
• AG - Flat Steel Armor Guards
• PSG - Spiral Guard

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Style	Nominal Part I.D.	Hose Size Range (inch)	Hose Inside Diameter	Length	Product Style	Length per Package
3PSG-4	Backordered	4 in stock	$14.66/each	EA	CNG Hose Guard - Stainless	0.54	na	n/a	6.25 inch	CNG Hose Guard - Stainless	n/a
55SG-12	Backordered	Backordered	$146.02/foot	FT	SG - Steel Spring Guards	1.09	na	n/a	n/a	Steel Spring Guards	10 ft
55SG-3	Backordered	179 in stock	$123.95/foot	FT	SG - Steel Spring Guards	0.47	na	n/a	n/a	Steel Spring Guards	25 ft
55SG-4	Backordered	Backordered	$68.22/foot	FT	SG - Steel Spring Guards	0.55	na	n/a	n/a	Steel Spring Guards	25 ft
55SG-6	Backordered	Backordered	$106.72/foot	FT	SG - Steel Spring Guards	0.67	na	n/a	n/a	Steel Spring Guards	25 ft
55SG-8	Backordered	Backordered	$98.63/foot	FT	SG - Steel Spring Guards	0.83	na	n/a	n/a	Steel Spring Guards	25 ft
55SSG-12	Backordered	3 in stock	$112.25/each	EA	SSG - Pre-made spring guards - steel	1.09	na	n/a	7 inch	Pre-made Spring Guards - Steel	n/a
55SSG-3	Backordered	Backordered	$32.39/each	EA	SSG - Pre-made spring guards - steel	0.44	na	n/a	5 inch	Pre-made Spring Guards - Steel	n/a
55SSG-4	Backordered	Backordered	$20.83/each	EA	SSG - Pre-made spring guards - steel	0.55	na	n/a	5 inch	Pre-made Spring Guards - Steel	n/a
55SSG-6	4 in stock	28 in stock	$6.26/each	EA	SSG - Pre-made spring guards - steel	0.68	na	n/a	5 inch	Pre-made Spring Guards - Steel	n/a
55SSG-8	Backordered	Backordered	$16.04/each	EA	SSG - Pre-made spring guards - steel	0.83	na	n/a	5 inch	Pre-made Spring Guards - Steel	n/a
CY02-652317	8 in stock	Backordered	$5.29/each	EA	HLBD02 Spring Guard	na	1/8	1/8 inch	n/a	HLB02 Hose Guard - Stainless	n/a
HBR-4	3 in stock	378 in stock	$5.17/each	EA	HBR - Hose Bend Restrictor	0.50	na	n/a	5 inch	HBR - Hose Bend Restrictor	n/a
HBR-6	Backordered	190 in stock	$5.72/each	EA	HBR - Hose Bend Restrictor	0.63	na	n/a	6 inch	HBR - Hose Bend Restrictor	n/a
PSG-110	33 in stock	Backordered	$1,230.73/foot	FT	PSG - Black/Yellow Polyethylene	na	5.910 and above	150 mm and above	n/a	Polyethylene	n/a
PSG-12	Backordered	Backordered	$368.30/foot	FT	PSG - Black/Yellow Polyethylene	na	0.394 - 0.512	10 to 13 mm	n/a	Black/Yellow	n/a
PSG-16	Backordered	895 in stock	$156.16/foot	FT	PSG - Black/Yellow Polyethylene	na	0.472 - 0.669	12 to 17 mm	n/a	Spiral Guard	n/a
PSG-20	Backordered	973 in stock	$181.21/foot	FT	PSG - Black/Yellow Polyethylene	na	0.630 - 0.866	16 to 22 mm	n/a	Polyethylene	n/a
PSG-25	Backordered	670 in stock	$232.02/foot	FT	PSG - Black/Yellow Polyethylene	na	0.866 - 1.100	22 to 28 mm	n/a	Spiral Guard	n/a
PSG-32	Backordered	650 in stock	$497.90/foot	FT	PSG - Black/Yellow Polyethylene	na	1.060 - 1.300	27 to 33 mm	n/a	Spiral Guard	n/a
