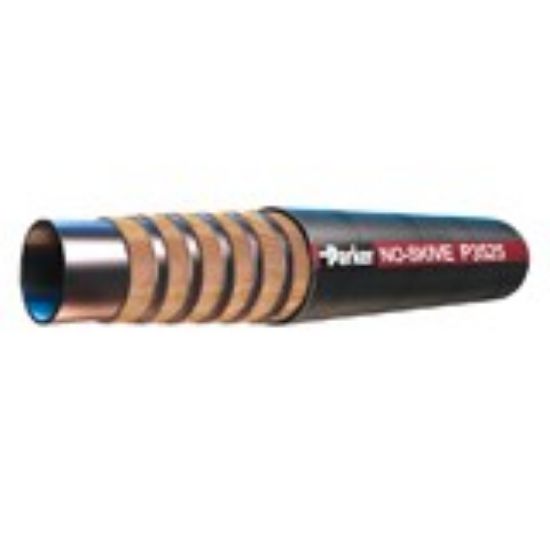

P3525-32 - Hydraulic Constant Working Pressure Cementing Hose 5000/8000 PSI - P35/P56 Hose

Parker’s P35/P56 hoses were designed to deliver dependable, durable, long-lasting, and leak-free connections for today’s oil and gas cementing applications.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU P3525-32

$389.24/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Cover Type	SuperTough
Maximum Working Pressure (psi)	5000	Nominal Hose Inside Diameter	51 mm
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire	Minimum Bend Radius	25 inch
Outside Diameter	2.820 inch	Weight	5 lb/ft
Size	-32	Maximum Operating Temperature	70 °C (Cement delivery)
Compatible Fitting	S6 Series	Hose Inner Tube Material	Synthetic Rubber
Minimum Operating Temperature	-40 °F Water & Water/Oil Emulsion & Water/Glycol Hydraulic Fluids	Media	Lubricants
Inside Diameter	2 inch	Cover Material	Synthetic Rubber Abrasion Resistant
Maximum Operating Pressure	35 MPa
