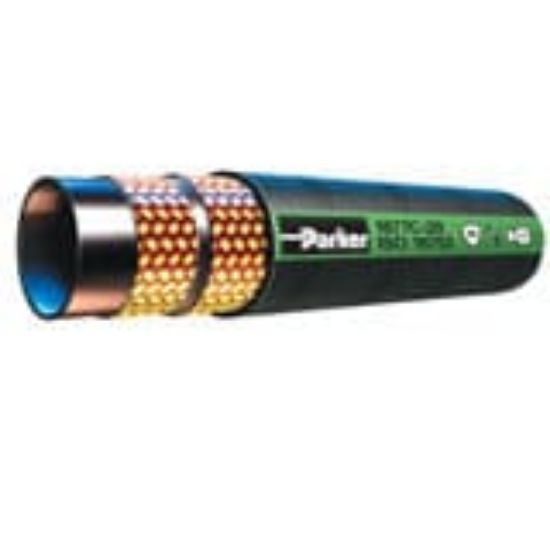

187-32 - Hydraulic Constant Working Pressure Hose 1000 PSI - GlobalCore 187 Hose

Robust and reliable 187 hose expands the unified GlobalCore series of ISO 18752 hoses as the first and only 1,000 PSI constant working pressure hydraulic hose offered in sizes -8 through -48.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	962 in stock

SKU 187-32

$37.44/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Hose Cover Type	Standard	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	100 °C	Inside Diameter	2 inch
Weight	1.75 lb/ft	Size	-32
Media	Petroleum Hydraulic Fluids (Petroleum Base)	Cover Material	Synthetic Rubber
Hose Cover Type	Standard Cover	Outside Diameter	65 mm
Compatible Fitting	43 Series	Specifications Met	ISO 18752
Minimum Bend Radius	318 mm	Vacuum Pressure Rating	457.2 mm-Hg
Hose Inner Tube Material	Synthetic Rubber	Maximum Operating Pressure	70 bar
Hose Reinforcement Material	2 Braids of Steel Wire	Nominal Hose Inside Diameter	51 mm
